按照以下格式来定义与温度相关的衬垫材料性质数据：

TB,GASKET,MAT,NTEMP,NPTS,LUNL

TBTEMP,T1

TBPT,,xl,yl

TBPT,,x2,y2

TBTEMP,T2

TBPT,,xl,yl

TBPT,,x2,y2

ANSYS将自动在温度点之间进行线性插值运算，当温度超过指定的范围后，软件将使用最靠近外界温度的点。下面列出了几种与温度相关的衬垫材料的数据输入格式的例子：

TB,GASKET,1,3,10,COMP !定义3个温度点的衬垫材料压缩数据，每个温度点有3个数据

TBTEMP, 100.000

TBPT,,0.20000E-04,0.54000E+08

TBPT,,0.40000E-04,0.15150E+09

TBPT,,0.60000E-04,0.24900E+09

TBPT,,0.78000E-04,0.30000E+09

TBPT,,0.12000E-03,0.37200E+09

TBPT,,0.19000E-03,0.47400E+09

TBPT,,0.28600E-03,0.58500E+09

TBPT,,0.35800E-03,0.67350E+09

TBPT,,0.43200E-03,0.78000E+09

TBPT,,0.50500E-03,0.89550E+09

TBTEMP,200.000

TBPT,,0.20000E-04,0.18000E+08

TBPT,,0.40000E-04,0.50500E十08(www.daowen.com)

TBPT,,0.60000E-04,0.83000E+08

TBPT,,0.78000E-04,O.10000E+09

TBPT,,0.12000E-03,0.12400E+09

TBPT,,0.19000E-03,0.15800E+09

TBPT,,0.28600E-03,0.19500E+09

TBPT,,0.35800E-03,0.22450E+09

TBPT,,0.43200E-03,0.26000E+09

TBPT,,0.50500E-03,0.29850E+09

TBTEMP, 300.000

TBPT,,0.20000E-04,0.90000E+07

TBPT,,0.40000E-04,0.25250E+08

TBPT,,0.60000E-04,0.41500E+08

TBPT,,0.78000E-04,0.50000E+08

TBPT,,0.12000E-03,0.62000E+08

TBPT,,0.19000E-03,0.79000E+08

TBPT,,0.28600E-03,0.97500E+08

TBPT,,0.35800E-03,0.11225E+09

TBPT,,0.43200E-03,0.13000E+09

TBPT,,0.50500E-03,0.14925E+09

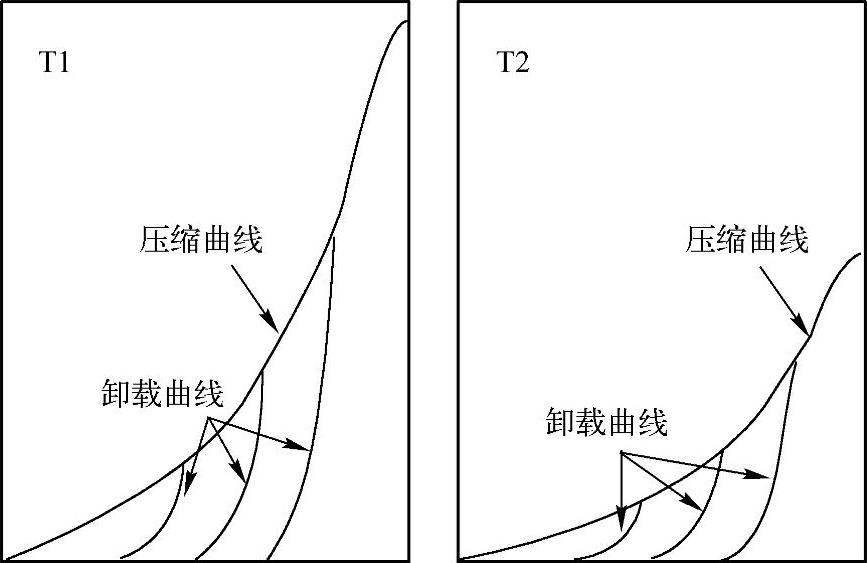

图22-4给出了衬垫材料两个温度下的压缩和卸载曲线。

图22-4 衬垫两个温度下的压缩和卸载曲线
